Technical Specifications for Led Video Wall

Technical Specifications for Led Video Wall

ITEM HD OUTDOOR RENTAL INSTALLATION LED SCREENS
Product model SJ-P2.604 SJ-P2.976 SJ-P3.91 SJ-P4.81 SJ-P5.95 SJ-P6.25 SJ-P6
Pixel pitch 2.604mm 2.976mm 3.91mm 4.81mm 5.95mm 6.25mm 6mm
Physical density 147456dots/m² 112896dots/m² 65536dots/m² 43264dots/m² 28224dots/m² 25600dots/m² 27777dots/m²
LED Package SMD 1415 (3in1) Nation Star SMD 1921 (3in1) SMD2727 (3in1) SMD3535 (3in1)
Module size 250mm*250mm 192mm*192mm
Modules resolution 96*96 84*84 64*64 52*52 42*42 40*40 32*32
Modules weight 0.75±0.01kg 0.45kg
Driving method 1/30S 1/21S 1/16S 1/13S 1/7S 1/10S 1/8S
Interface definition HUB-16P
Cabinet size 500mm*500mm*85mm / 500mm*1000mm*85mm 576mm*576mm
960mm*960mm
Cabinets weight 8.6kg/16kg 40kg/m²
Cabinets resolution 192*192
192*384
168*168168*336 128*128128*256 104*104104*208 84*8484*168 80*8080*160 96*96
160*160
Equilibrium brightness 4500-6500cd/m² 5000-7500cd/m² 5500-6500cd/m²
Power consumption Max: ≤880W/m², Average: ≤400W/m² Max: ≤700W/m², Average: ≤350W/m² Max: ≤810W/m², Average: ≤400W/m²
Refresh rate ≥3840Hz (ICN2055 Driving IC)
Viewing angle Level H: ≥160°Optional, V: ≥120°Optional
Viewing distance 2.5-30m 3-40m 4-60m 5-70m 6-80m 6.5-90m 6-80m
Temperature Working : -25~60, Storage: -35~80
Humidity 10%~95%
Working voltage Input: AC 100V~240V, 50Hz/60Hz, Output: DC 5V
Maintenance method Front/Back service
Protection grade Front: IP65, Back: IP65
Lifetime 100,000 Hours
1 of 3

LED Video Walls Details

1. Features

Outdoor rental full-color LED screen is installed outdoors, with relatively high brightness, still clearly visible in strong outdoor light, moderate density, good effect, and no splicing gaps. It is the mainstream equipment for outdoor dynamic advertising.

  • Seamless assembling between modules
  • High precision and reliability
  • Light weight and thin
  • Rich colors and clear picture
  • Large viewing angle
  • High brightness and contrast

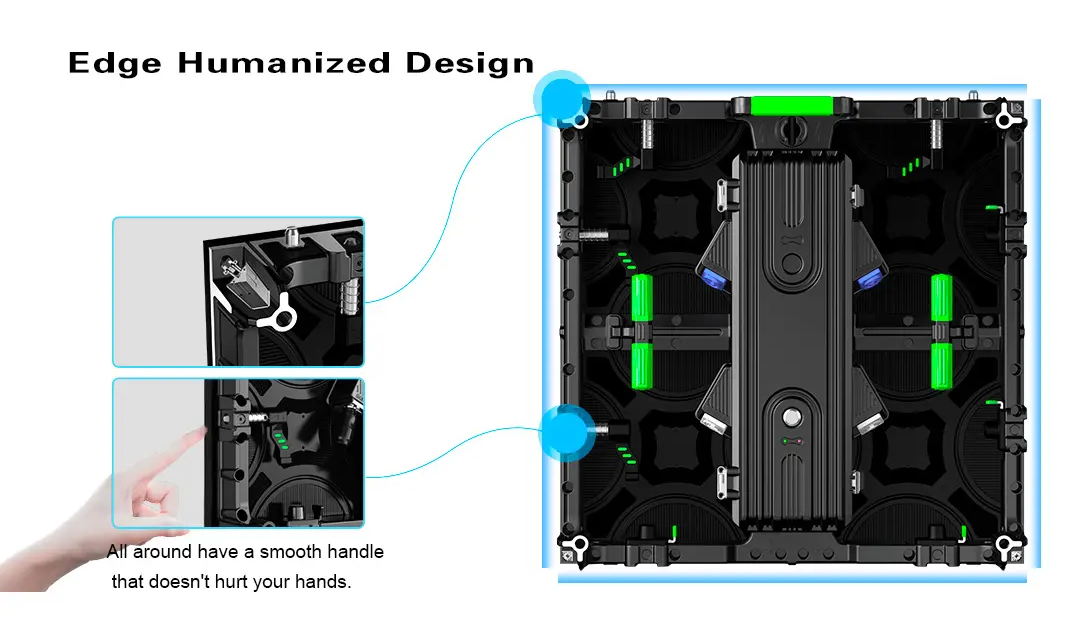

  • Smart and fast lock design
  • IP65 waterproof high protective grade

2. Cabinet Size

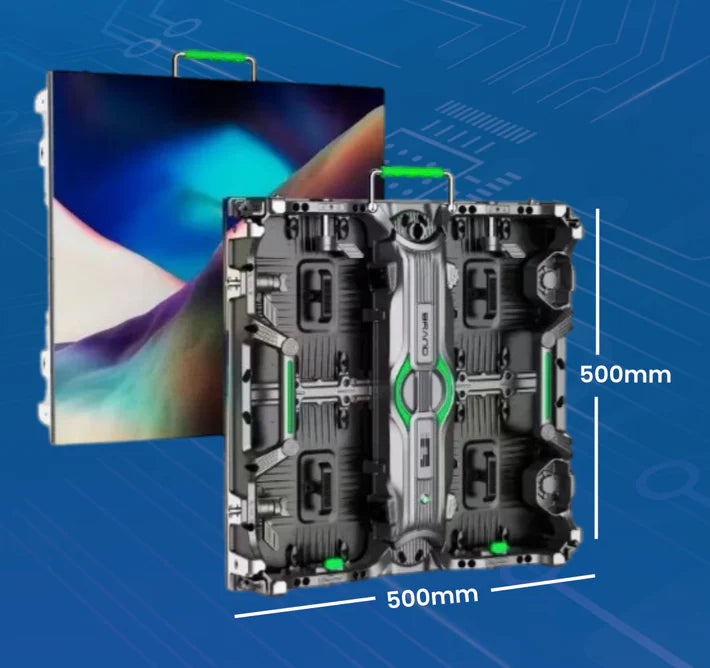

In this series, we have 500*500mm cabinets and 500*1000mm cabinets, customers can choose by themselves, 500*500mm is a common choice for foreign customers, if you want a more cost-effective solution, you can choose 500*1000mm cabinets .

3. Quick Assembly

Supports hoisting, back frame installation, and the flatness of the module installation surface is required to be controlled within ±0.1mm, which can show high-definition picture quality and delicate colors, which can be comparable to LCD to a certain extent.

4. High Refresh Rate, Switching without Flickering

The ultra-high refresh rate of 3840Hz, under the shooting of professional cameras and camcorders, has no smear and no flicker, ensuring high-definition and delicate display images, and meeting the needs of live broadcast lens switching without flicker.

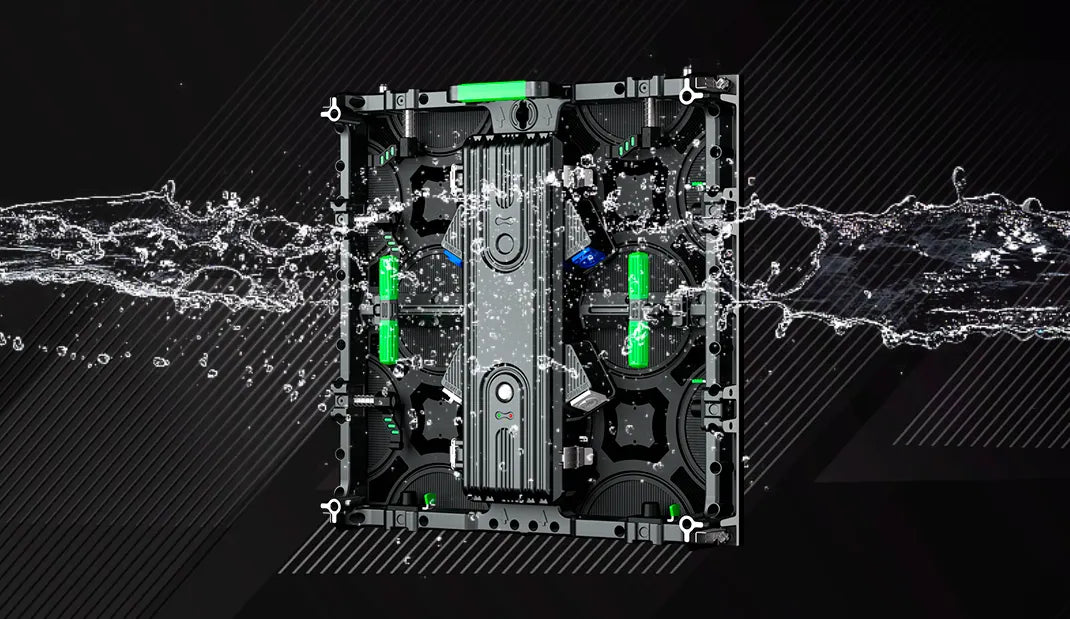

5. IP65 Waterproof Rating

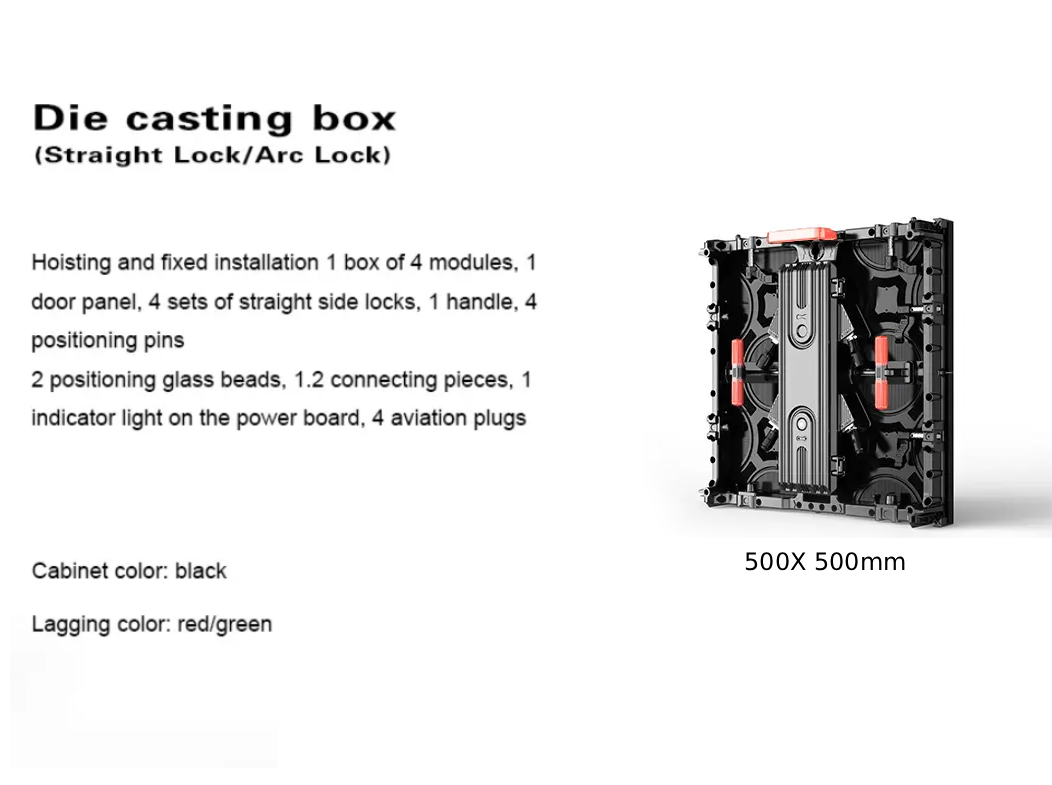

Due to the limitation of the installation environment and the influence of weather such as sun and rain, the LED outdoor rental display is generally installed in a waterproof die-casting cabinet or a waterproof standard cabinet. The outdoor led screen adopts a waterproof and dust-proof back shell, which is fixed by screws. The frame is treated with injection-molded waterproof glue, and the screen cabinet has a complete sealing performance, which is fully suitable for all kinds of bad weather.

Exquisite workmanship and systematic testing ensure the quality of products and escort customers.

6. The Cabinet Can Be Stacked

Using 500*500mm or 500*1000 cabinets, it can easily cope with various sizes of construction. The display effect is vivid, the viewing angle is wide, the display mode is various and the operation is convenient, the seamless stitching has high flatness, and the maintenance is convenient.

  • Hospitality

    hotels, resorts, cruise lines, casinos, movie theaters

  • Food & Drink

    restaurants, coffeehouses, QSR, pizza shops

  • Retail & Advertising

    malls, department stores, specialty stores

  • Corporate

    conference centers, offices, banks, exhibitions

  • Healthcare

    hospitals, clinics, infirmaries

  • Transportation


    airports, train stations, subway stations, bus stations

LED Video Walls

Order Cost-Effective Digital Signage to Improve Advertising, Messaging & Communication

LED Video Wall

500 X 500 mm Display

LED Video Walls are large, high-resolution display screens made up of multiple LED panels. They deliver bright, seamless visuals ideal for advertising, events, control rooms, and corporate presentations — offering stunning clarity and impact at any scale.

Get a Quote

High Refresh Rate

High-frequency refresh rates, allowing the panel to redraw the contents of the screen several times per second.

FULL RESOLUTION

LED screens with a high pixel density that deliver flawless images even when seen from a distance.

Modular System

Custom sizes and shapes thanks to modular engineering that allows almost any design to be built.

Installation

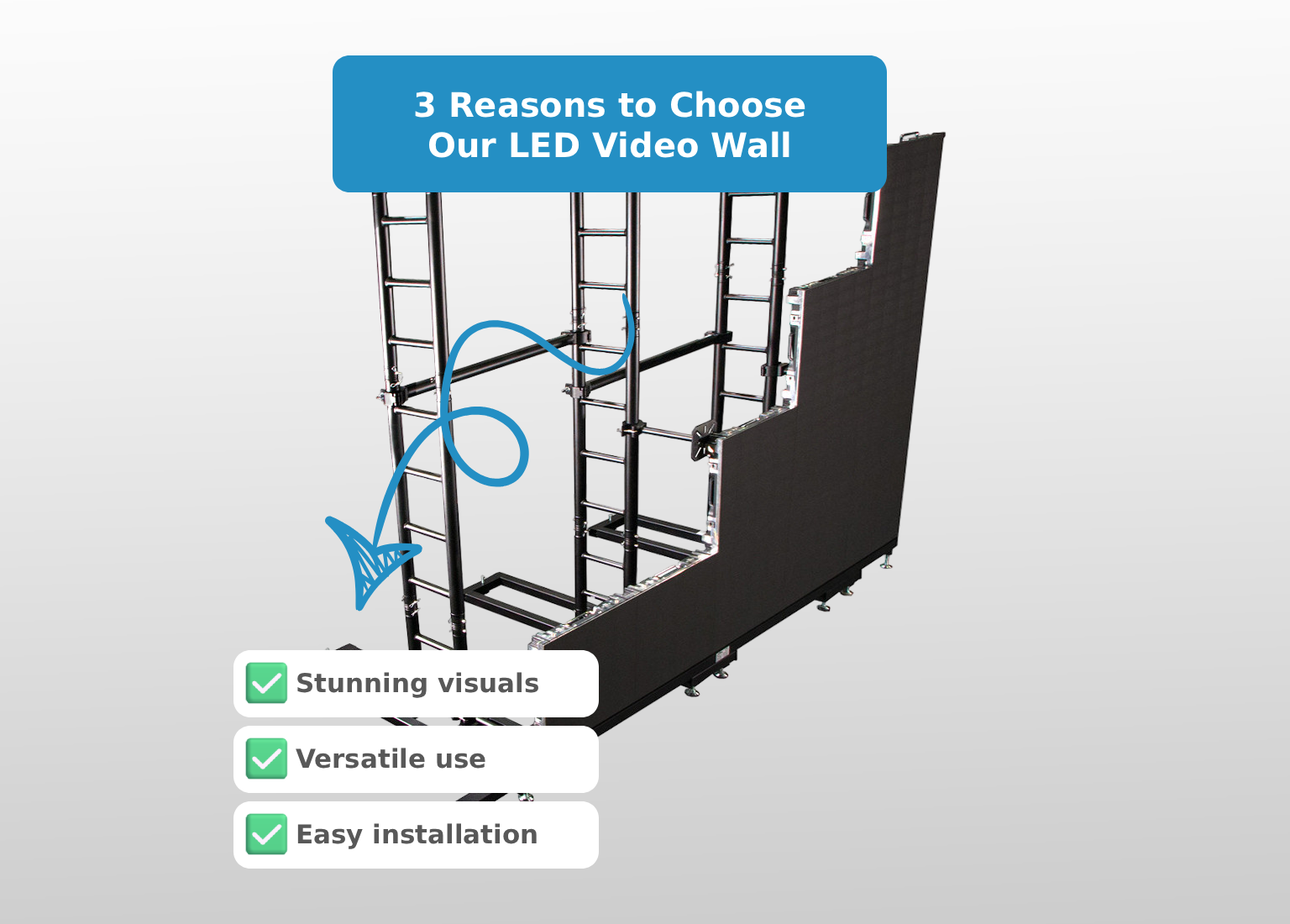

Tailored Screen Installation Options Based on Your Environment. We Offer Ground Support Installation, Flown Method, and Wall-Mounted Solutions—All Installed by Our Expert Team
