P3.91 LED Video Wall P3.91mm indoor and outdoor use
P3.91 LED Video Wall P3.91mm indoor and outdoor use
Regular price
$325.00 USD
Regular price
Sale price
$325.00 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Led Walls P3.91mm

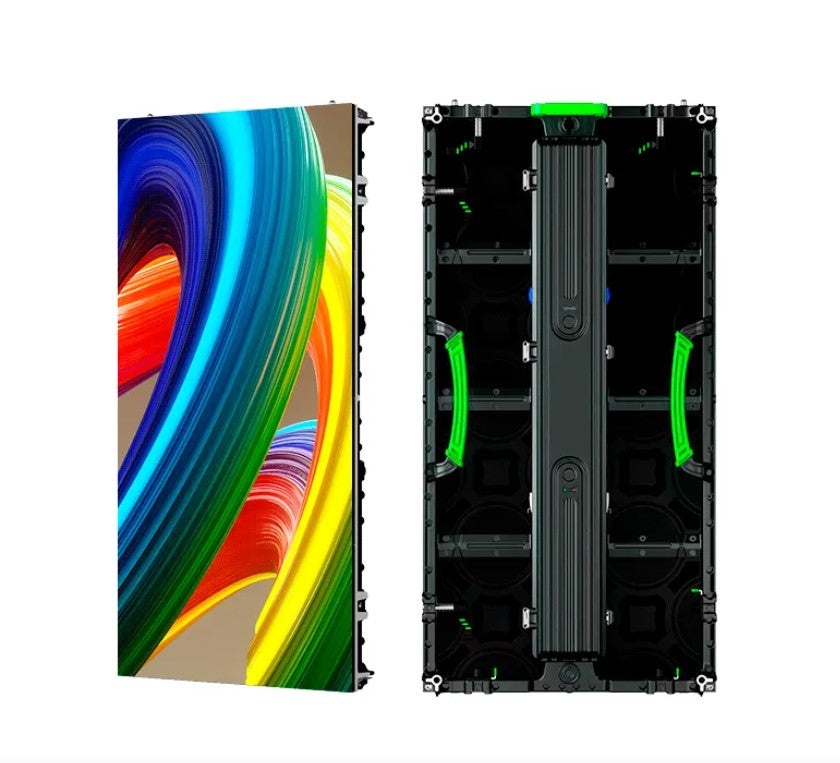

P3.91mm LED Video Wall delivers sharp, high-definition visuals with excellent color accuracy and brightness. It features a standard 250×250mm module and common cabinet sizes of 500×500mm or 500×1000mm for fast, seamless tiling. Ideal for rental/staging (quick lock system, lightweight) or fixed installation.
Key Advantages:
- High refresh rate (≥3840Hz) for flicker-free video and smooth motion.
- Wide viewing angle (140°/140° or better).
- Front or rear service options (magnetic modules on many models).
- Lightweight die-cast aluminum cabinets for easy rigging and transport.
- High contrast and grayscale for vibrant, lifelike images.
Technical Specifications (Typical Values)
Specifications vary slightly by manufacturer (indoor vs. outdoor versions) and model (rental vs. fixed). Here are representative specs:
| Parameter | Indoor P3.91 | Outdoor P3.91 |
|---|---|---|
| Pixel Pitch | 3.91 mm | 3.91 mm |
| LED Type | SMD2020 (or SMD2121) | SMD1921 / SMD2727 |
| Pixel Density | 65,536 dots/m² | ~65,410 dots/m² |
| Module Size | 250 × 250 mm | 250 × 250 mm |
| Module Resolution | 64 × 64 pixels | 64 × 64 pixels |
| Cabinet Size | 500 × 500 mm or 500 × 1000 mm | 500 × 500 mm or 500 × 1000 mm |
| Cabinet Resolution | 128 × 128 (500×500) or 128 × 256 | 128 × 128 or 128 × 256 |
| Brightness | 800–1,500 nits | 4,000–5,500 nits |
| Refresh Rate | ≥ 3,840 Hz | ≥ 3,840 Hz |
| Viewing Angle | H: 140° / V: 140° | H: 140° / V: 140° |
| Scan Mode | 1/16 scan | 1/16 scan |
| Gray Scale | 14–16 bit | 14–16 bit |
| Best Viewing Distance | 4 m – 40 m (≈13–130 ft) | 4 m – 40 m (≈13–130 ft) |
| IP Rating | IP20–IP54 (indoor) | IP65 (front) / IP54 (rear) |
| Cabinet Weight | ≈ 7–8 kg (500×500mm) | ≈ 7.5–13 kg (depending on model) |
| Power Consumption | Avg: 60–120 W/panel Max: 200–300 W/m² | Avg: 250 W/m² Max: 800 W/m² |
| Operating Temp/Humidity | -10°C to +40°C / 10–95% RH | -20°C to +60°C / 10–95% RH |
| Lifetime | ≥ 100,000 hours | ≥ 100,000 hours |
Common Cabinet Features:
- Die-cast aluminum for flatness and durability.
- Quick-lock system for fast assembly/disassembly.
- Curved installation options on some rental models.
- Compatible with NovaStar, Colorlight, or Linsn control systems.
Applications
- Indoor: Conferences, trade shows, corporate events, churches, retail stores, control rooms, stage events.
- Outdoor: Concerts, festivals, advertising billboards, sports venues (weatherproof versions).
Why Choose P3.91mm?
- Balances cost, resolution, and brightness perfectly for most mid-to-large installations.
- Pixel pitch suits viewing distances starting from about 13 ft (4 m) without seeing individual pixels.
- Excellent for 4K/HD content playback with high refresh rates.
